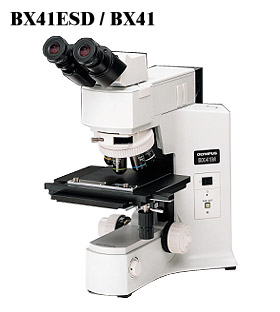

BX41M
|
BX41M-ESD |
| Optical system |
|
UIS optical system |
| Objectives |
UIS objectives |
| Eyepieces |
UIS eyepieces |
| Microscope frame |
Illuminator |
Reflected light |
Reflected light(with ESD performance) |
| 6V30W power supply, light preset switch |
6V30W power supply, light preset switch |
Focus
|
Vertical stage movement: 25mmFine focus movement: 100mMinimum graduation: 1mUpper limit stopTorque adjustment for coarse adjustment knobs |
Maximum
sample
height |
65mm (w/o spacer) |
| Observation tubes |
Widefield
(F.N. 22) |
Inverted: binocular, trnocular and tilting binocular observation tubesErect: trinocular and tilting binocular observation tubes |
| Super widefield(F.N. 26.5) |
Inverted: trinocular observation tubeErect: trinocular and tilting trinocular observation tubes |
| Reflected light illumination |
BX-KMA |
BX-KMA-ESD |
| 30W halogen, BF/DIC/KPO |
30W halogen, BF/DIC/KPO |
| Revolving nosepieces |
For BF |
Sextuple, centerable sextuple, septuple revolving nosepieces(optional: motorized sextuple) |
Sextuple revolving nosepiece with slider slot for DIC with ED performance |
| Stage |
Coaxial stage with left or right hand low drive control, with torque adjustment(Movement: X=76mm, Y=52mm)Large-sized coaxial stage with left or right hand low drive control,With Y direction locking mechanism)Movement: X=110, Y=52mm) |
