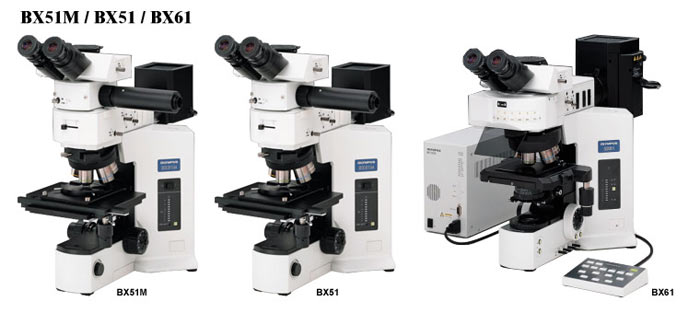

BX51M
|
BX51
|
BX61 |
| Optical system |
|
UIS optical system (infinity-corrected) |
| Objectives |
UIS objectives |
| Eyepieces |
UIS eyepieces |
| Microscope frame |
Illumination |
Reflected |
Reflected/transmitted |
Built-in 12V100W light source
Light preset switch
LED voltage indicator |
Built-in 12V100W light sourceLight preset switchLED voltage indicatorReflected/transmitted changeover switch |
External 12V100W light sourceLight preset switchLED voltage indicatorReflected/transmitted changeover switch |
Focus
|
Stroke 25mmFine stroke per rotation 100μmMinimum graduation 1μmWith upper limit stopper, torque adjustment for coarse handle |
Motorized focusing
Stroke 25mm
Minimum graduation 0.01μm |
Maximum
sample
height |
65mm
(w/o spacer) |
25mm (w/o spacer) |
| Observation tubes |
Widefield
(F.N. 22) |
Inverted: binocular, trinocular, tilting binocular
Erect: trinocular, tilting binocular |
| Super widefield(F.N. 26.5) |
Inverted: trinocular
Erect: trinocular, tilting binocular |
| Reflected light illumination |
BF etc. |
BX-RLA2100W halogen (high intensity burner, fiber illuminator mountable)BF/DF/DIC/KPOFS, AS (with centering mechanism), BF/DF interlocking ND filter |
BX-RLAAMotorized BF/DF changeoverMotorized AS |
| Reflected fluorescence |
BX-URA2100W mercury lamp, 75W xenon lamp50W metal halide lamp6position mirror unit turret (standard: WB, WG, WU+BF etc)with FS, AS, (with centering mechanism), with shutter mechanism |
BX-RFAAMotorized 6 position turretBuilt-in motorized shutterWith FS, AS |
| Transmitted light |
- |
100W halogen
Abbe/long working distance condensers
Built-in transmitted light filters (LBD, ND25, ND6) |
| Revolving nosepieces |
For BF |
Sextuple, centering sextuple, sextuple (motorized sextuple: optional) |
Motorized sextuple, centering quintuple |
| For BF/DF |
Quintuple, centering quintuple, sextuple (motorized sextuple: optional) |
Motorized quintuple |
| Stages |
Coaxial left (right) handle stage:76(X)⊙52(Y)mm, with torque adjustment
Large-size coaxial left (right) handle stage: 110(X)⊙105(Y)mm, with lock mechanism in Y axis |
