Eyepiece
|
Magnification 10X, erect image (inverted when used with upright observation tube), F. N. 14. Diopter adjustment range: ±5 diopter. Provided with rubber eye shade. |

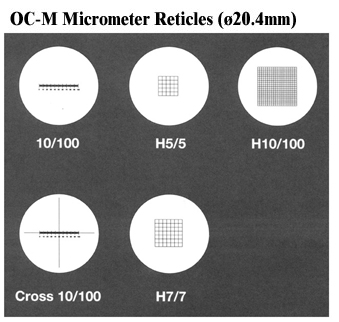

| Measuring scale |
Scale lines graduated in increments of 1mm in the entire 10mm length. Shift of scale lines: 1mm per rotation of the shift ring, the circumference of which is divided into 100 graduations. |
| Measuring range |
10mm/objective magnification |
| Compensation limit for objective magnification tolerance |
±5% by combined use of the zoom compensation ring and the provided stage micrometer. Compensation ring clamping screw. Magnification compensation scale. |
| Actual size |
Actual size(mm) = measured value(mm)/objective magnification |
| Reproducibility |
Reproducibility error ±0.007/A mm(A…objective magnification) |
| Accuracy |
Measuring error(A…objective magnification, L…measured length in mm)±[ (0.0002XA + 0.002)L + 0.007/A] mm |
