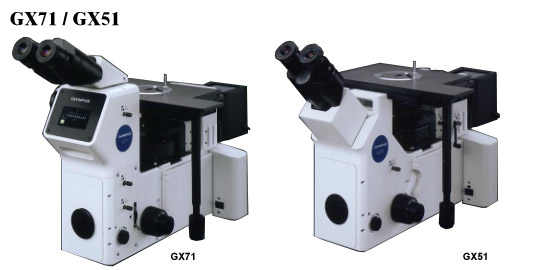

GX71 |
GX51 |
| optics |
|
UIS optical system(infinity ~ corrected) |
| Objective |
UIS objectives |
| Eyepiece |
UIS eyepiece (F.N. 26.5) |
UIS eyepiece (F.N. 22) |
| Microscope body |
Intermediate magnification |
Zoom incorporated (1X~ 2X)Clicks in the two intermediate positions (can be released) |
- |
| Imprinting of scale |
All portsReversed positions (up/down/left/right) from observationPositions seen through the eyepiece |
All portsReversed positions (up/down) from observationPositions seen through the eyepiece |
| Power source |
Power source for illuminator (12V100W halogen) incorporated |
| Focusing |
Manual, Coarse and Fine coaxial handle. Focus stroke 9mm (2mm above and 7mm below the stage surface) |
| Photo frame |
Incorporated(IN/OUT) |
- |
| Output port |
Front port---photomicrographic equipment (upright image), video and DP system (reversed image, special video adapter for GX) |
| Side port---video, DP system (reversed image) |
Side port (option)---video, DP system (upright image) |
| Observation tube |
Super widefield
(F.N. 26.5) |
U-SWBI30, U-SWTR-2 |
- |
| Widefield(F.N. 22) |
- |
U-BI90, GX-BI90, U-TR30H |
| Illuminator |
Observation method |
Brightfield, darkfield, simple polarized light, DIC, fluorescence |
brightfield, darkfield, simple polarized light, DIC |
| Illuminator diaphragm |
FS/AS manually controlled, with centering adjustment |
| Light source |
100W halogen (standard), 100W mercury, 75W xenon, 50W metal halide (optional) |
| Revolving nosepiece |
Manula operation |
Sextuple for BF/DIC, quintuple for BF/DF, quintuple for BF/DF/DIC, quadruple for BF with centering |
| Motorized operation |
Sextuple for BF/DIC, quintuple for BF/DF/DIC |
| Stage |
Standard type |
Right handle stage for BS (X/Y stroke: 50x50mm) |
| Option |
Flexible right handle stage, left short handle stage (each X/Y stroke: 50x50mm)Gliding stage, rotatable stage for BX (scheduled for introduction in 2003) |
| Stage insert plate |
A set of teardrop and long hole types |
| Image recording |
Photomicrographic |
Special photomicrographic lens(attached) gives 10X magnification with large-format camera, 3.3X with 35mm cameraphotomicrographic system-35mm/large-format camera (simultaneously mountable) ,1% spot/30% average measuring area(switchable), auto/manual exposure,exposure time adjustment, automatic ISO setting, AE lock, multiple exposure, etc |
Digital camera,
video camera |
OLYMPUS DP series etc, attachable using appropriate adapters |
| Combined weight |
Approx. 37kg(BF, DF and DIC observations, combined with GX-PHU) |
approx. 28kg(BF, DF and DIC observations, combined with DP12) |
| Power consumption |
170VA, 140W (excluding photomicrographic system) |
